NDAA Compliant NVR |
Dual Gigabit Ethernet Ports
|
H.265/H.264 Video Compression
|
Supports LPR, VCA, & Smart Features
|

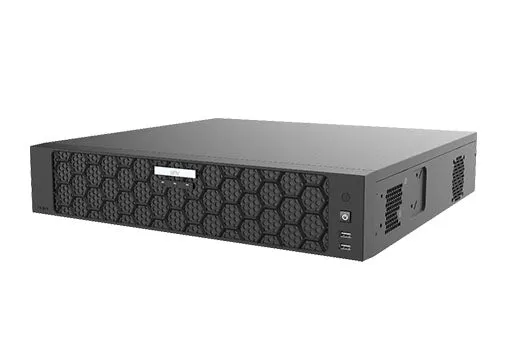

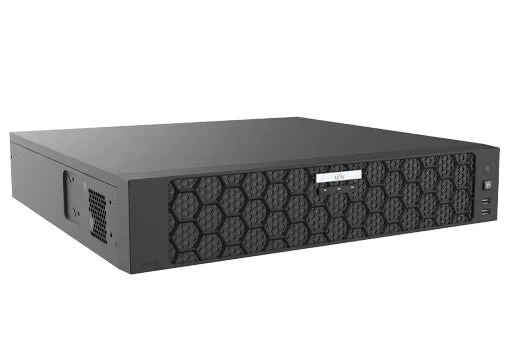

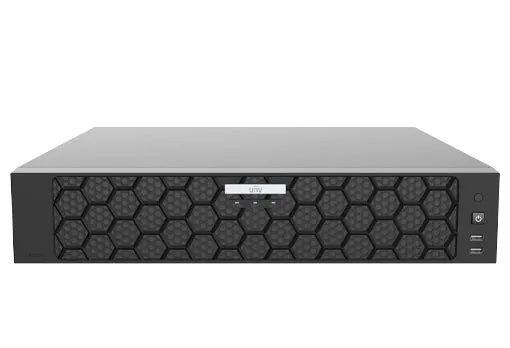

UNV NDAA Compliant NVR - 64 Channels | Ultra H.265 Support | Dual LAN Inputs
This NVR offers 8-channel total of UMD (Ultra Motion Detection) & SIP (Smart Intrusion Protection).
UMD allows the NVR to only trigger recording when the camera detects a human, vehicle, or both - this is used to reduce the recording of standard motion events such as shadows, plants, animals, and so on.
SIP recording is used for line crossing, intrusion boxes, and enter/exit area alerts. The total number of enable channel has been increased on this model and can be used with any camera from Uniview.
It also supports dual lens camera and dual lens PTZ special forms for the camera layouts
- HDMI and VGA independent outputs
- Playback decoding ability (4 x 8MP @ 30fps, 6 x 5MP @ 30fps, 8 x 4MP @ 30fps, 16 x 2MP @ 30fps)
- High network incoming bandwidth support of 320Mbps
- Supports panoramic dual lens, dual-lens PTZs, fisheye, thermal, and license plate cameras
- 16 Alarm Inputs / 4 Alarm Outputs
| National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020. Use of restricted products affects government contractors even on their own security systems on their private property. Recently, the FCC has followed suit and also banned those same manufacturers. This product is made with 100% NDAA compliant parts. |
|
|
|
This NVR has dual ethernet LAN ports, primarly LAN port 1 is the main network and LAN 2 is used with PoE switches to connect all of the cameras. Uniview IP cameras are designed to be Plug-N-Play through the search function on this NVR. |
| Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution. | |
| Supports VCA and Smart features such as line-crossing, intrusion detection, human/vehicle detection, and ultra motion detection. These modes are designed to eliminate false alerts to allow you to stay informed by true push-notifications. Supports LPR cameras and fisheye dewarping. |
|
|
Extreme decoding ability means being able to playback more channels at one time during surveillance footage review. 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080p@30, 32 x 960p@25, 36 x 720p@30, 64 x D1 |
|
|
Supports audio recording when connected to Uniview cameras with built-in microphones. Uniview makes it easy to either enable or disable audio in the camera setup menu |
